GPS Magnetic Suction Cup Mount
Magnetic GPS Logger Suction Cup Mount
Dash Cam Accessories: Patented GPS Logging Magnetic Power Mount
(Patent No. US 9,900,480 B1)

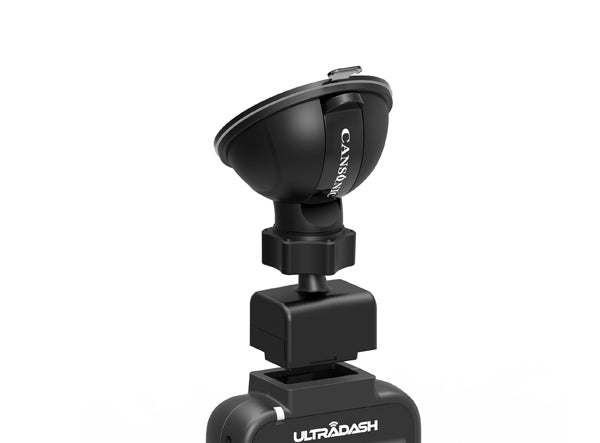

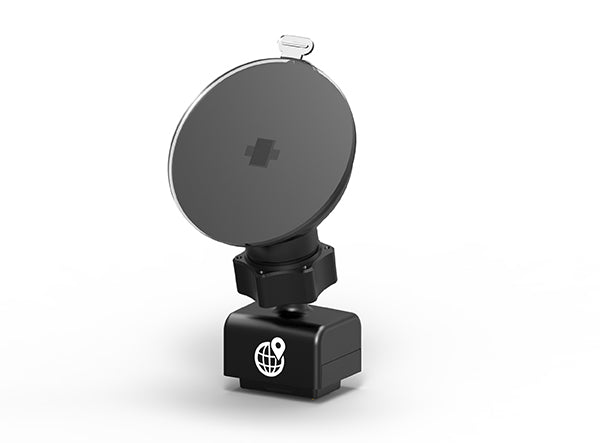

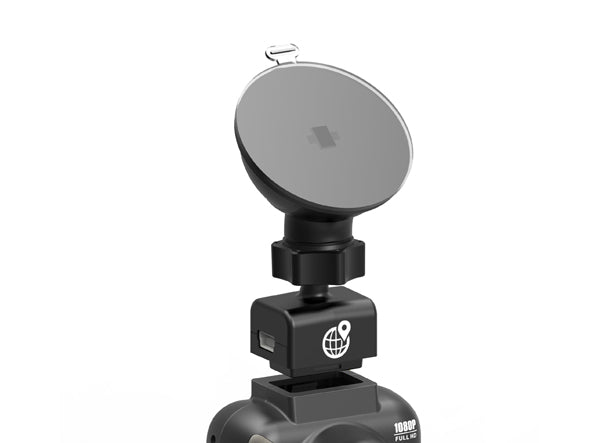

Specifications: Suction cup mount can be breakdown into three parts: Suction cup, Locking Ring, Magnetic GPS Logging Power Connector.
Product Size: Suction Cup diameter 1.77 inches, Ball Joint diameter 0.47 inches, Magnetic GPS Logging Power Connector size 0.71 x 0.9 x 0.67 inches, the length from suction cup to magnetic power connector (Top to Bottom) is about 3 inches.
Compatible Model: UltraDash C1 / Z3 (Standard and Commercial)
Please check and confirm your Dash Cam model or contact our Customer Service Team for support.

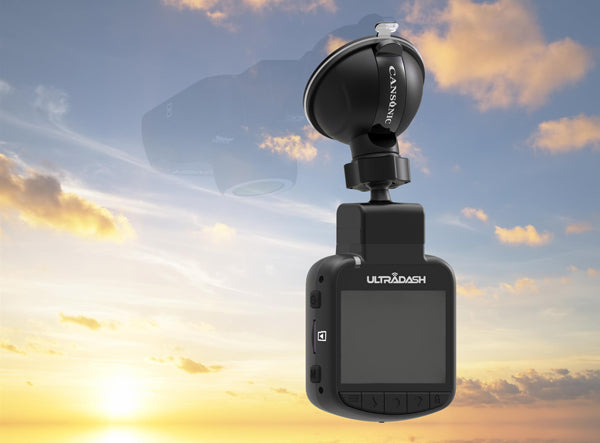

Clean the windshield first, then use the Static Side Film for the suction cup mounting position on the windshield. Attach the suction cup to the Static Side Film on the windshield, connect the dash cam to the magnetic GPS logging power connector to complete the installation.It is recommended to install the dash cam at the center below the rear-view mirror, make sure it does not interfere and distract your drive.

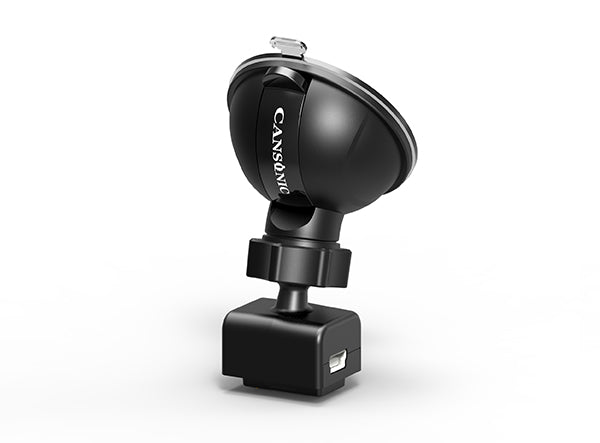

The magnetic power connector has a built-in DC-IN connector slot to connect the power cable. The dash cam can be easily removed without unplugging the car power cable, and the wiring in the car will be much cleaner and tidy.
For detailed installation, please refer to our article: 7 Easy Steps to Install a Dash Cam Yourself
The built-in GPS Logging module can record the speed, latitude, longitude, direction of the drive, and information of the G sensor data at the time.We have also developed iQ Player, a dash cam video playback software for free download and use. Through iQ Player, users can watch the video and view all synchronized detailed data, and it also works with Google Map, allowing users to view the traveled path. This feature is handy for companies with fleet management.
The Magnetic Suction Mount is removable, has strong suction, is long-lasting, and won't damage window tinting film. It is the best value for dash cam mounting accessories.
Additional applicable accessories: Remove the locking ring, and the power connector can be pulled out and replaced with another mounting bracket such asMAGNETIC SUCTION CUP MOUNT, GPS MAGNETIC 3M™ ADHESIVE MOUNT, MAGNETIC 3M™ ADHESIVE MOUNT and sand push the ball joint into the bracket then tighten the locking ring back.
Note: When tightening/loosening the locking ring, ensure the ring is aligned with the thread for tightening and securing the mount.
