Magnetic Suction Cup Mount
Magnetic Suction Cup Mount
Dash Cam Accessories: Patented Magnetic Power Mount
(Patent No. US 9,900,480 B1)

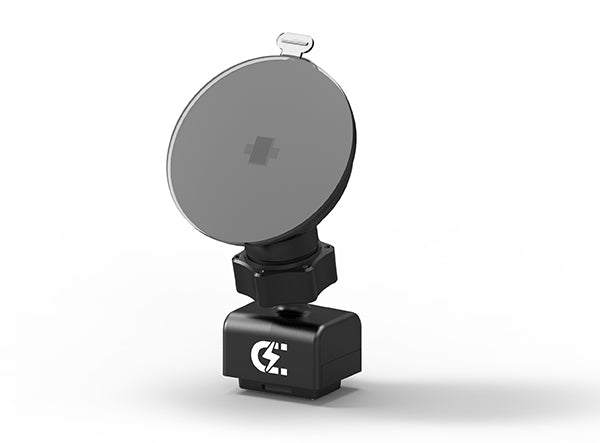

Specifications: Suction cup mount can be breakdown into three parts: Suction cup, Locking Ring, Magnetic Logging Power Connector.
Product Size: Suction Cup diameter 1.77 inches, Ball Joint diameter 0.47 inches, Magnetic Power Connector size 0.71 x 0.9 x 0.67 inches, the length from suction cup to magnetic power connector (Top to Bottom) is about 3 inches.
Compatible Model: UltraDash C1 / Z3 (Standard and Commercial)
Please check and confirm your Dash Cam model or contact our Customer Service Team for support.

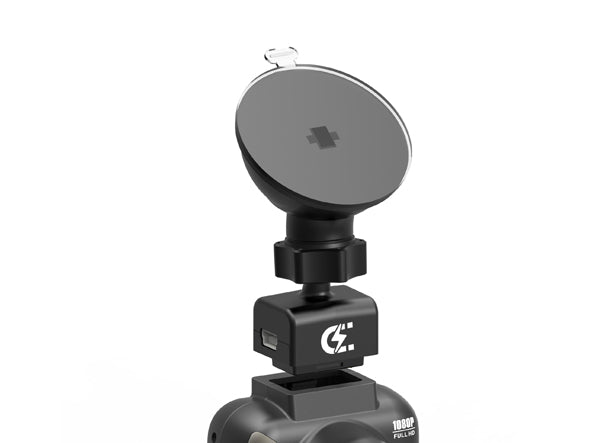

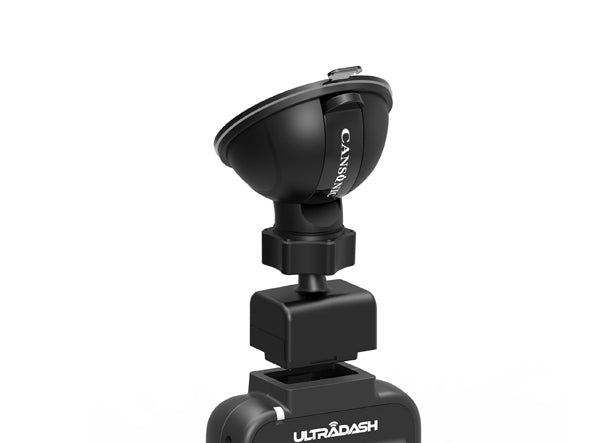

Clean the windshield first, then use the Static Side Film on the windshield for suction cup mounting position. Attach the suction cup to the Static Side Film on the windshield, connect the dash cam to the magnetic power connector to complete the installation. It is recommended to install the dash cam at the center below the rear-view mirror, make sure it does not interfere and distract your drive.

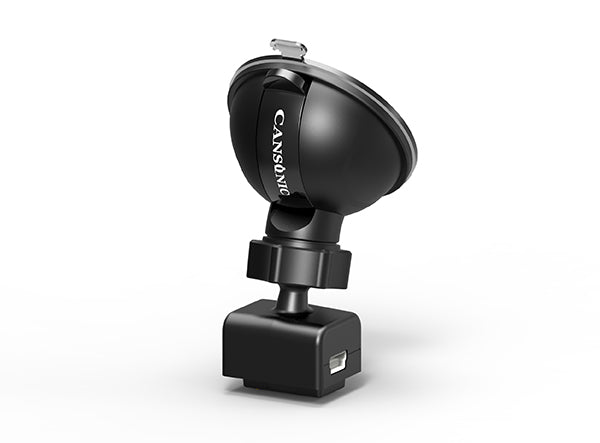

The magnetic power connector has a built-in DC-IN connector slot which can connect the power cable, so that the dash cam can be easily to remove without unplugging the car power cable and the wiring in the car will be much cleaner and tidy.
For detailed installation, please refer to our article: 7 Easy Steps to Install a Dash Cam Yourself
For GPS Logger function, please refer to GPS MAGNETIC SUCTION CUP MOUNT
The Magnetic Suction Mount is removable, strong suction, long lasting and it won't damage window tinting film. It is the best value for dash cam mounting accessories.
Additional applicable accessories: Just remove the locking ring, and the power connector can be pulled out and replaced with others mounting bracket such as GPS MAGNETIC SUCTION CUP MOUNT, GPS MAGNETIC 3M™ ADHESIVE MOUNT, MAGNETIC 3M™ ADHESIVE MOUNT and simply push the ball joint into the bracket then tighten the locking ring back.
Note: When tightening / loosening the locking ring, be sure the ring is aligned with the thread for tighten and securing the mount.
